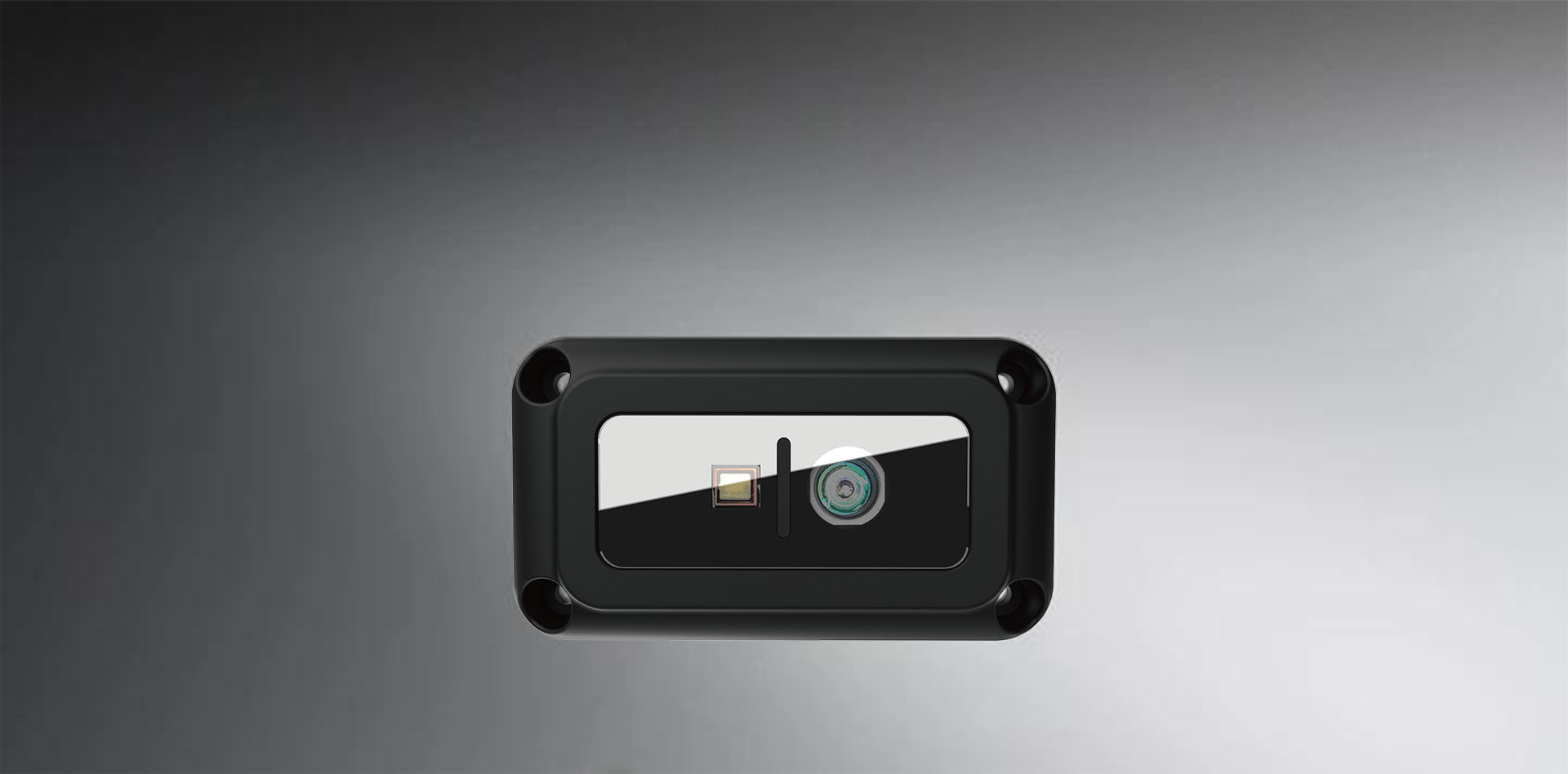

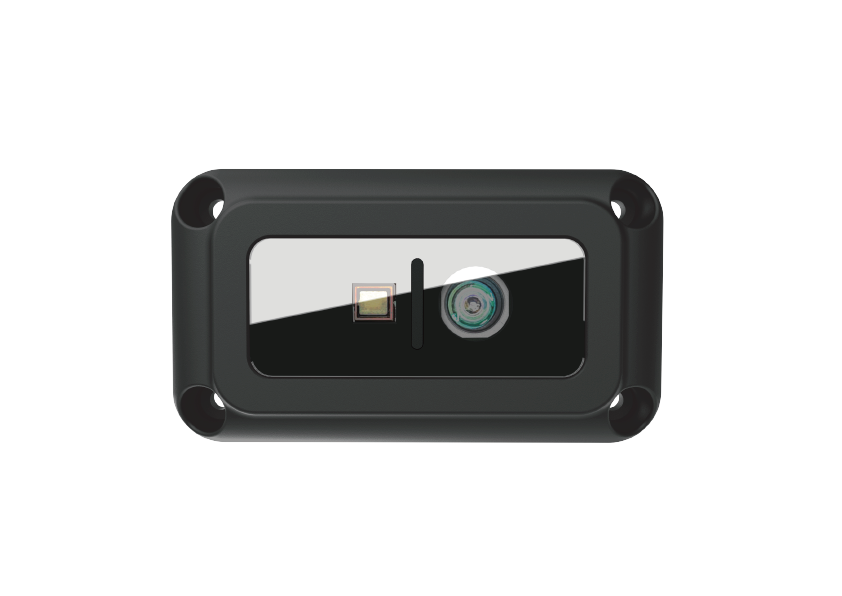

Consumer-grade 3D ToF LiDAR
Compact size, solid-state small area array, easy installation.
Added MCU
dToF
±10@1m
TX：120 °x45 °；RX：120 °x90 °RGB：150 (H)*110 (V)，Rolling shutter
深度：100*40
RGB：1920*1080
≤0.1m
50K LUX
905nm
10Hz
≤3W
5V ±0.5V
MIPI
48.6*48.6*14.85mm
IP54
Class 1
Operating temperature-10~55℃
Storage temperature-30~70℃
Operating humidity 0~93%RH
Storage humidity 0~93%RH
RoHS，REACH
